Continental Series Flagpole - External Halyard
The Continental Series from Concord American Flagpole combines heavy-duty aluminum flagpoles in 20′ to 80′ mounting heights with the highest quality hardware available to the industry today. These flagpoles meet the most stringent architectural standards and are certain to enhance the landscape of any business or industrial property.

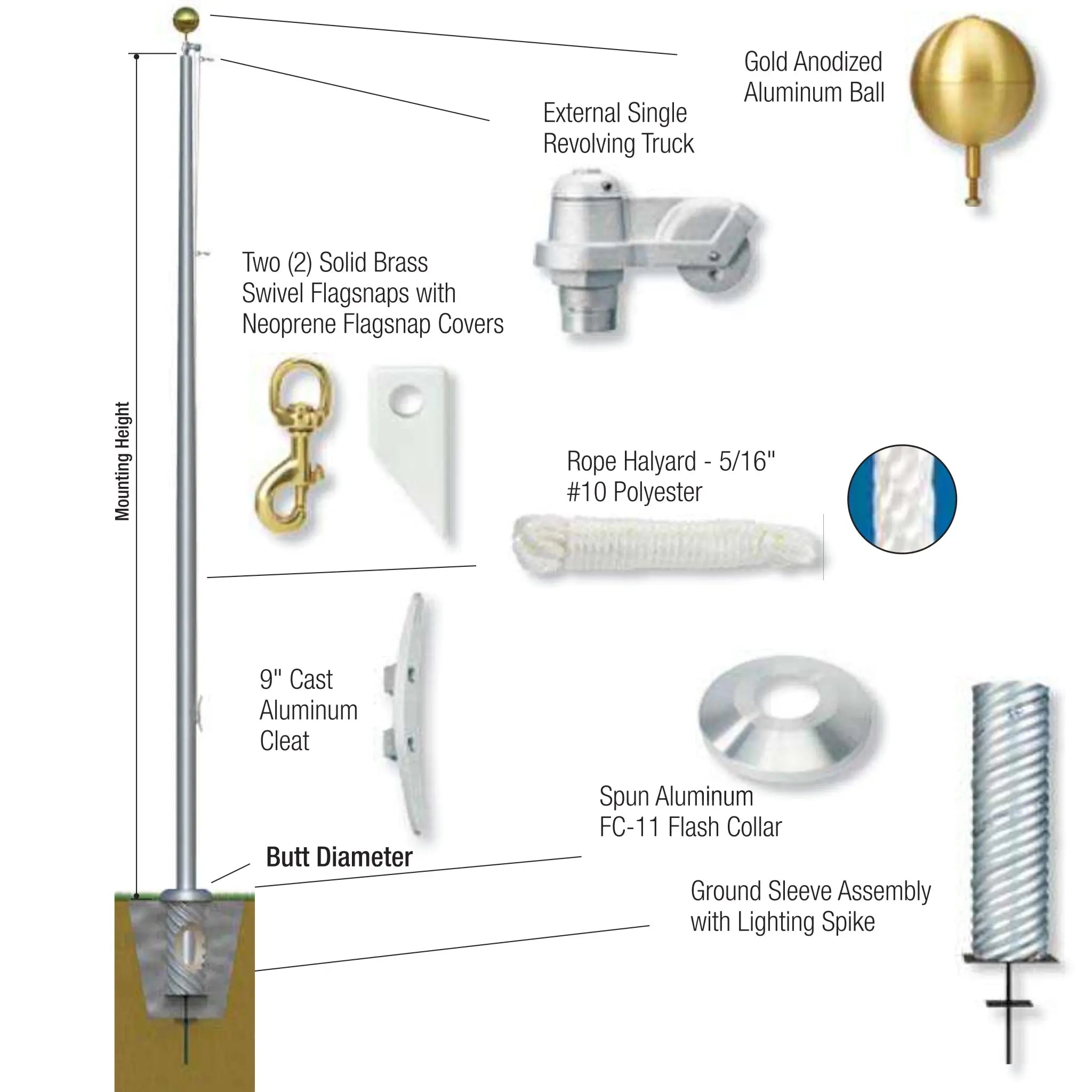

Standard Specifications Included
- Patented, Heavy-Duty Gold Anodized Aluminum Ball

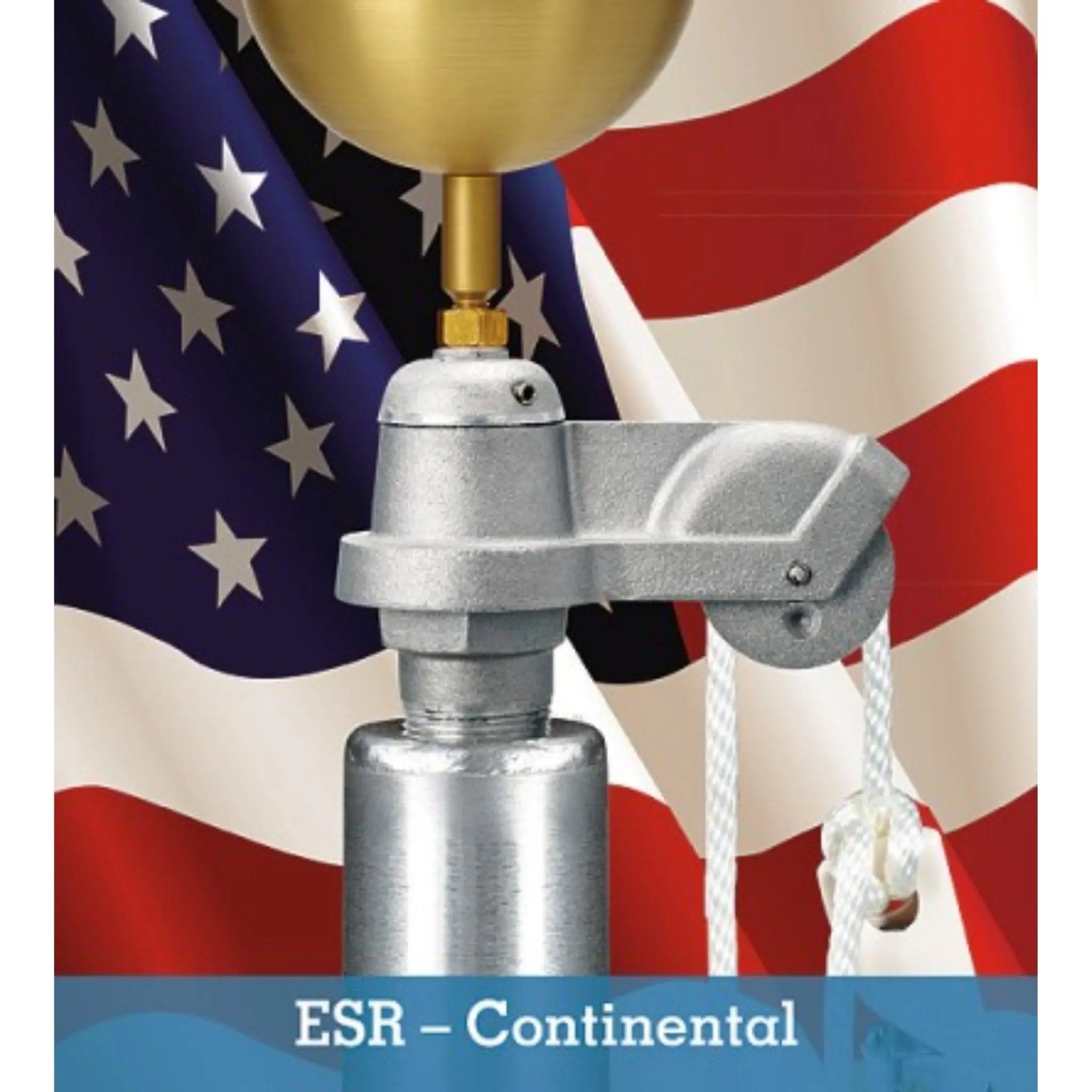

- Cast Aluminum Revolving Truck with Dual Stainless Steel Bearing Assemblies, Aluminum Pulley and Aluminum Spindle
- Complete External Halyard Assembly
- Rope Halyard – 5/16″ #10 Polyester
- Two (2) Solid Brass Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- 9″ Cast Aluminum Cleat
- Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike
Additional Downloads
- Wind Zone Map
- Flagpole Wind Speed Chart
- Product Spec Sheet - Continental Series - ESR
- Installation Instructions
Wind Ratings
|
Exposed |
Butt |
Wall |
Shaft Sections |
Wind |
Wind |
Part Number |
| 20' | 4" | .125" | 1 | 109 | 147 | ESR20B41-*** |
| 20' | 5" | .125" | 1 | 136 | 229 | ESR20B51-*** |
| 20' | 5" | .156" | 1 | 160 | 262 | ESR20C51-*** |
| 20' | 5" | .188" | 1 | 182 | 287 | ESR20D51-*** |
| 20' | 6" | .156" | 1 | 208 | 301 | ESR20C61-*** |
| 20' | 6" | .188" | 1 | 229 | 328 | ESR20D61-*** |
| 25' | 4" | .125" | 1 | 83 |
106 |
ESR25B41-*** |
| 25' | 5" | .125" | 1 |
98 | 136 |
ESR25B51-*** |
| 25' | 5" | .156" | 1 | 111 |
178 |
ESR25C51-*** |
| 25' | 5" | .188" | 1 | 124 |
209 |
ESR25D51-*** |
| 25' | 5.5" | .188" | 1 | 146 | 231 | ESR25DH1-*** |
| 25' | 6" | .156" | 1 | 149 |
230 |
ESR25C61-*** |
| 25' | 6" | .188" | 1 | 168 |
253 |
ESR25D61-*** |
| 30' | 5" | .125" | 2 |
78 |
96 |
ESR30B52-*** |
| 30' | 5" | .156" | 2 |
86 |
112 |
ESR30C52-*** |
| 30' | 5" | .188" | 2 |
98 |
131 |
ESR30D52-*** |
| 30' | 6" | .156" | 2 |
108 | 174 |
ESR30C62-*** |
| 30' | 6" | .188" | 2 |
122 |
197 |
ESR30D62-*** |
| 35' | 5" | .156" | 2 |
73 |
87 |
ESR35C52-*** |
| 35' | 5" | .188" | 2 |
79 |
95 |
ESR35D52-*** |
| 35' | 6" | .156" | 2 |
87 |
116 |
ESR35C62-*** |
| 35' | 6" | .188" | 2 |
97 |
145 |
ESR35D62-*** |
| 35' | 7" | .156" | 2 | 110 | 165 | ESR35C72-*** |
| 35' | 7" | .188" | 2 | 127 | 187 | ESR35D72-*** |
| 40' | 7" |
.156" |
2 |
87 |
122 |
ESR40C72-*** |
| 40' | 8" |
.156" |
2 |
107 |
157 |
ESR40C82-*** |
| 40' | 8" | .188" |
2 |
122 |
177 |
ESR40D82-*** |
| 45' | 8" |
.188" |
2 |
102 |
144 |
ESR45D82-*** |
Other Finishes & Heights Available Call to Order:
- Clear Anodized
- Dark Bronze Anodized
- Black Anodized
- Bronze Tone Powder-coat
- Black Powder-coat
- White Powder-coat
- Clear Powder-coat
Product Specs
More information about Continental Series Flagpole - External Halyard. This Flagpoles order item number is ESR20B41-SAT
| Collection: | |
| Shop Flags & Banners: | |
| Flagpoles: | |
| Outdoor Flagpole Series: | |
| Quality Type: |
