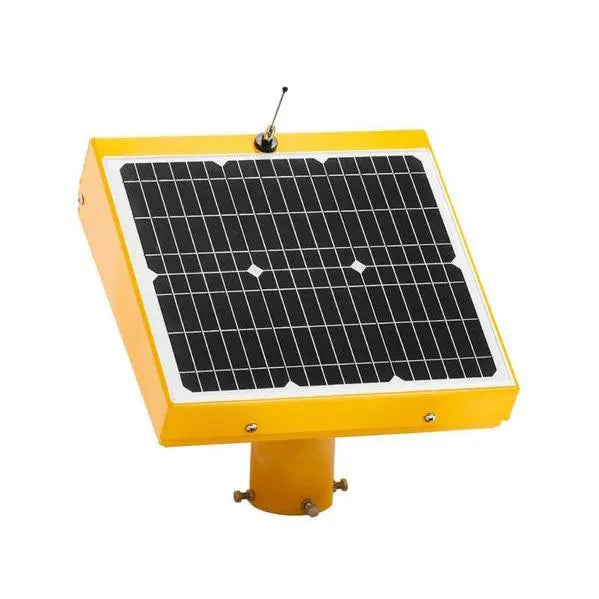

Solar Powered Remote Transmitter | AB-4400

Solar Powered Remote Transmitter | AB-4400

REMOTE TRANSMITTER

• Solar engine includes solar panel, battery and control electronics with radio communication
• Elegant, integrated design simplifies installation and resists vandalism
  Solid aluminum enclosure with durable powder-coated finish

INTRODUCTION
Configurations including remote transmitters consist of two integral components: the transmitter and the beacons. Mounted on its own separate pole, the manually activated remote transmitter is connected to a pedestrian push button. When the button is pressed, the transmitter communicates with Pedestrian-Activated AB Beacons installed up to several hundred yards away from the transmitter. These transmitters can allow the pedestrian push button to be mounted separately from the associated beacons without the need of trenching. This may be necessary due to roadway obstructions and urban planning layouts. These solar powered transmitters and solar powered beacons are designed for hundreds of activations per day to withstand extended usage.

SYSTEM OVERVIEW

Certification
CE and UL certified electrical components

Operation
Pedestrian push button activation provides remote activation for beacons

Operating temperature
-40°F to +165°F (-40°C to +74°C)

Controller input voltage
12 V DC

Solar panel
20 W nominal 12 V, CE and TUV certified

Battery storage
AGM 12 V, 18 Ah, UL certified, field replaceable

Alternate power
AC-compatible, includes “Battery Tender® 800”

COMMUNICATION

Type
ISM spread spectrum radio, 902-928 MHz

Range
Up to 0.5 miles (800 m) with line of sight

Network addresses
16 unique addresses to avoid interference between multiple crosswalk locations

Compatibility
All AB family units

POWER MANAGEMENT

Rated usage
300 cycles per day

Charged capacity
Minimum of 30 days at rated usage (without charging)

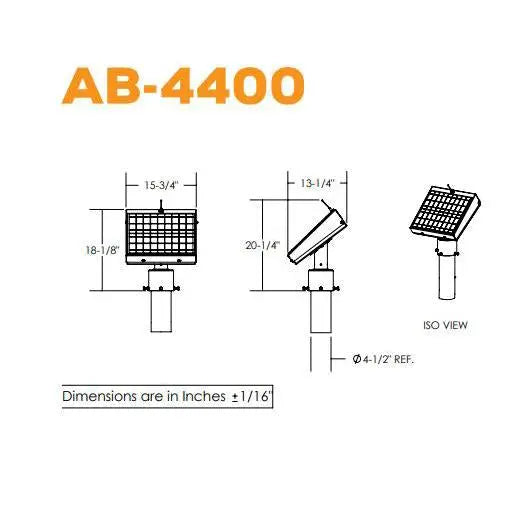

PHYSICAL DESIGN

Configuration
Fully self-contained

Color
Grey, black, green or yellow

Material
Powder coated aluminum

Weight
Approx - 22 lbs. (10 kg)

Available mounting for
Round pole: 2”, 3”, 4.5”
Square post: 4”, 6”, 4”x6”
Telespar & U-Channel: 2” Side-mounting

WARRANTY
5-year Limited Warranty for defects in workmanship and materials
(excludes batteries and vandalism)
