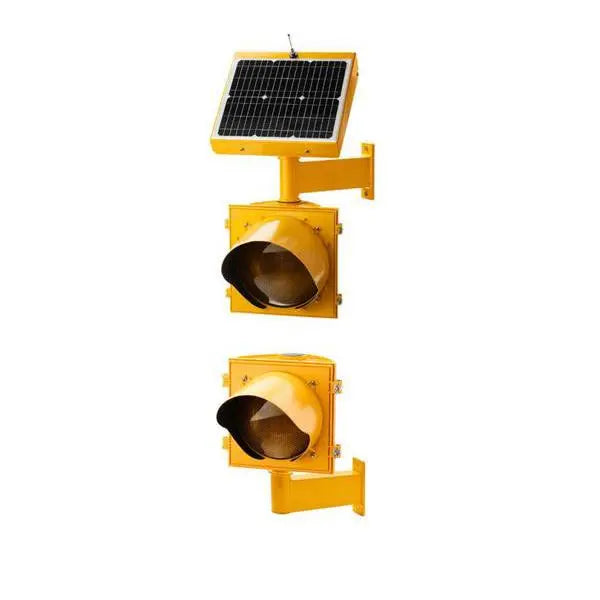

Dual, Vertical Pole Mounting Crosswalk System | AB-7412

Dual, Vertical Pole Mounting Crosswalk System | AB-7412

BEACON HEADS

• 2-piece 100% polycarbonate signal housings • Lightweight
• UV stabilized for longevity and non-fading colour
• Reinforced with steel Redi-Rod for greater strengh

SOLAR ENGINE

• Solar engine includes solar panel, battery
and control electronics with radio communication
• Elegant, integrated design simplifies installation and resists vandalism
• Solid aluminum enclosure with durable powder-coated finish


SYSTEM OVERVIEW

Certification
CE and UL certified electrical components

Compliance
FHWA MUTCD compliant
FCC EMC Class A verified

Operation
Pedestrian push button or remote controlled

Flash patterns
MUTCD (0.5 second on, 0.5 second off) or JSF Tech High Visibility Strobe Pattern

Variations
Synchronized or Wig-Wag (alternating)

Activation duration
Variable from 5 seconds to 4 hours

Operating temperature
-40°F to +165°F (-40°C to +74°C)

Controller input voltage
12 V DC

Solar panel
20 W nominal 12 V, CE and TUV certified

Battery storage
AGM 12 V, 18 Ah, UL certified, field replaceable,
Optional cold weather battery upgrade

Alternate power
AC-compatible, includes “Battery Tender® 800”

POWER MANAGEMENT

Rated usage
300 cycles per day, 25 second activation

Charged capacity
Minimum of 30 days at rated usage (without charging)

Auto brightness
6 stages of brightness for different light conditions and battery levels

Self monitoring
Visual notification of sub-optimal operation

LED MODULE

Standard
ITE VTCSH-STD 2005

Lens
UV stabilized polycarbonate and Abrasion resistant

Size
12” diameter (300 mm)

LED color
Amber

Additional LEDs
Optional tell tale LED (amber, approx - 1” x 2”)
Optional additional signal head for pedestrian confirmation

COMMUNICATION

Type
ISM spread spectrum radio, 902-928 MHz

Range
Up to 0.5 miles (800 m) with line of sight

Network addresses
16 unique addresses to avoid interference between multiple crosswalk locations

Compatibility
All AB family units and third-party devices

Push buttons
Polara Bulldog, Polara XAV, Campbell 4EVR, Campbell Guardian AGPS

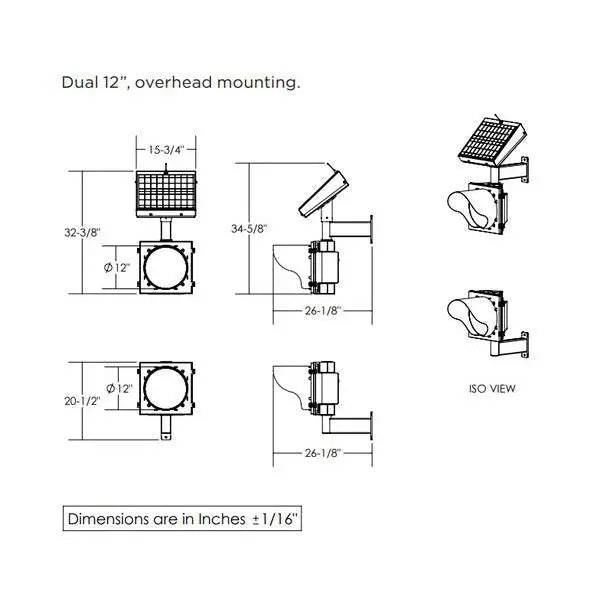

PHYSICAL DESIGN

Configuration
Fully self-contained

Color
Black, green or yellow
Custom colors also available

Solar engine
6061-T6 powder coated aluminum

Signal housing
100% Polycarbonate

Weight
Approx - 47 lbs (21 kg)

Available mounting
Vertical pole side mount bracket

WARRANTY

5-year Limited Warranty for defects in workmanship and materials
(excludes batteries and vandalism)
