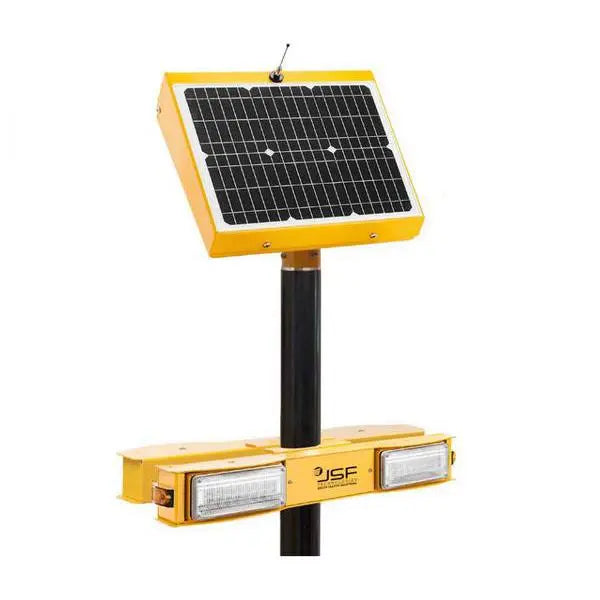

Dual Sided - RRFB | SZ-9407

Dual Sided - RRFB | SZ-9407

JSFT Programmable Beacons can be installed anywhere with cellular reception* or in places without, via direct connection. A preset flash schedule can be created using the web-based JSF Tech Beacon App and sent to the beacons wirelessly online, or with a laptop and USB with our offline scheduler. Beacons can also be activated using a cellular-enabled mobile device. The programming can store multiple years and varying schedules, and diagnostic information can be accessed from cellular Primary Beacons.

Each Programmable Beacon set consists of two beacon types: Primary and Secondary. The Primaries store the programmed flash schedule and, if cellular-enabled, contain modems. The Secondaries receive daily on/off signals from the Primaries. Any number of Secondary beacons can be linked to a Primary beacon within range. When a Primary receives an activation command, it relays this command to all Secondary beacons within range in the series.

SYSTEM OVERVIEW

Certification
CE and UL certified electrical components, NEMA TS 2-2003 certified,
SAE J595 (class 1) & SAE J578 certified LEDs

Compliance
FHWA MUTCD compliant
FCC EMC Class A verified

Operation
Programmable schedule and Mobile device activation

Flash pattern
MUTCD RRFB Pulsing Pattern (as per IA-21)

Operating temperature
-40°F to +165°F (-40°C to +74°C)

Controller input voltage
12 V DC

Solar panel
20 W nominal 12 V, CE and TUV certified

Battery storage
AGM 12 V, 18 Ah, UL certified, field replaceable,
Optional cold weather battery upgrade

Alternate power
AC-compatible, includes “Battery Tender® 800”

Diagnostics
Reporting on battery levels, activations, beacon state, GPS location, etc.

POWER MANAGEMENT

Rated usage
120 mins of activation per day (average) or more

Charged capacity
Minimum of 30 days at rated usage (without charging)

Auto brightness
Auto brightness for nighttime conditions (no daytime dimming)

Self monitoring
Visual notification of sub-optimal operation

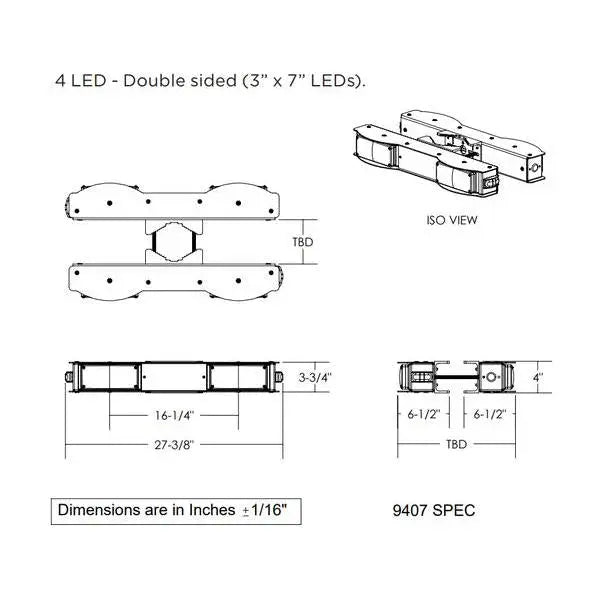

LED MODULE

Standard
SAE J595 (Class 1) & SAE J578 certified

Size
Approx - 3” x 7”

Horizontal LED pivot
20° off center

LED color
Amber

Tell-tale LED
Amber, approx - 1” x 2” and options include one, two, or none per light bar

COMMUNICATION: INTER-BEACON

Between beacons
ISM spread spectrum radio, 902-928 MHz

Range
Up to 0.5 miles (800 m) with line of sight

Network addresses
16 unique addresses to avoid interference between multiple locations

Compatibility
All SZ family beacons

COMMUNICATION: PRIMARY BEACONS (-P)

Incoming commands
Cellular communication* or via direct USB connection

GPS
GPS, GNSS and GLONASS compatibility and Time synchronization

A primary beacon receives and stores preset schedules from the
JSF Tech Beacon App and receives instant activation messages from
authorized users.

COMMUNICATION: SECONDARY BEACONS (-S)

Incoming commands
Relies on the primary beacon’s commands

A secondary beacon relies on its primary beacon for all activation commands.

PHYSICAL DESIGN

Design
Three piece system: light bars and solar engine

Color
Black, green or yellow
Custom colors also available

Signal head
6061-T6 powder coated aluminum

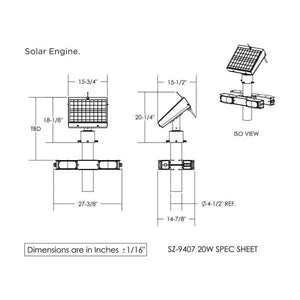

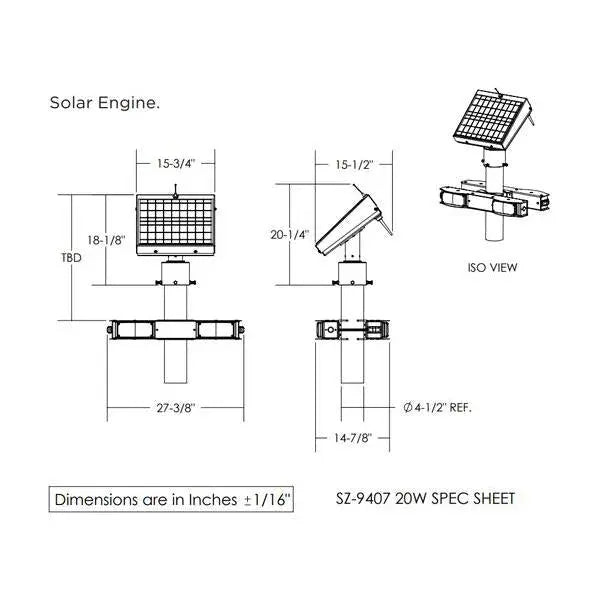

Solar engine
6061-T6 powder coated aluminum

Weight
Approx - 43 lbs. (19 kg)

Available mounting for
Round pole: 2” - 8”
Square post: 4”, 6”, 4”x 6”
Side mounting
Telespar & U-Channel: 2”

WARRANTY

5-year Limited Warranty for defects in workmanship and materials
(excludes batteries and vandalism)

Product Specs

More information about Dual Sided - RRFB | SZ-9407. This Signs order item number is SZ-9407-P
